BREWHOUSE
25HL 3 VESSELS

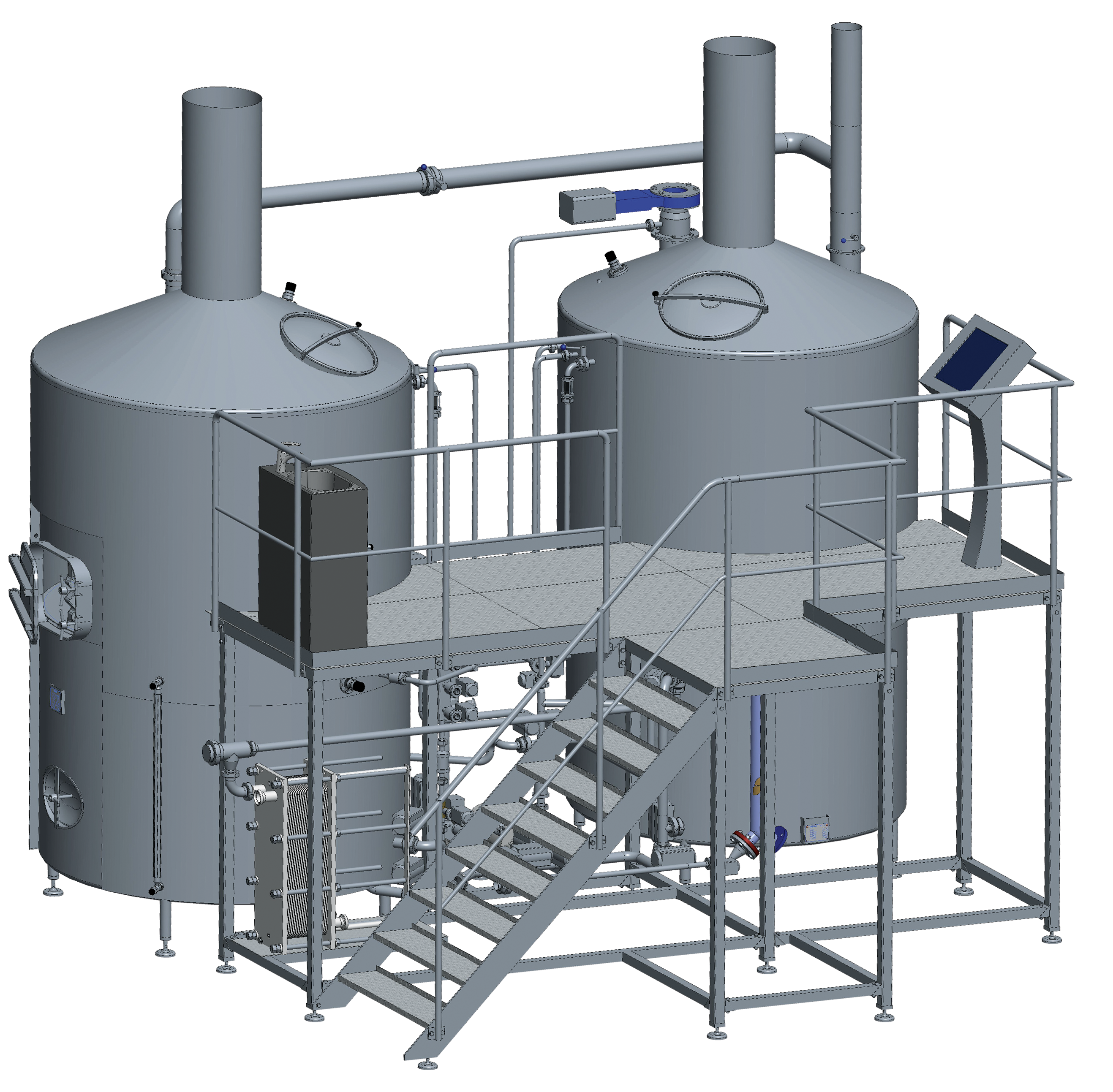

Brewhouse composed of 3 stainless steel vessels - the mash-boiling tun, the lauter tun and the whirlpool- enabling the brew of 25hl of cooled wort either by infusion (for Ale type beers) or by decoction (for Lager type beers). The Mash tun is also used as a Boiling tun.
From
157 400€
excl. VAT
Technical Data
|
Dimensions Length / Width / Height [mm] |
6450x3030x410 |
| Height of the service platform [mm] | 1 830 |
| Empty weight of the brewhouse [kg] | 4 200 |
| Gross volume of the filter tank [l] | 3 250 |
| Maximum filter pressure [kg/m2] | 180 |
| Gross volume of the mash tun [l] | 3 600 |
| Average weight per m2 at full load [kg] | 3 410 |
| Steam requirements [kg / h] | 600 |
| Steam consumption [per brew] | 300 |
| Power of the steam generator [kW] | 1 125 |
| Power of the electric oil boiler [kW] | 200 |
| Water consumed for condensation of residual vapors [l / brew] | 500 |
