BREWHOUSE
5HL 2 VESSELS

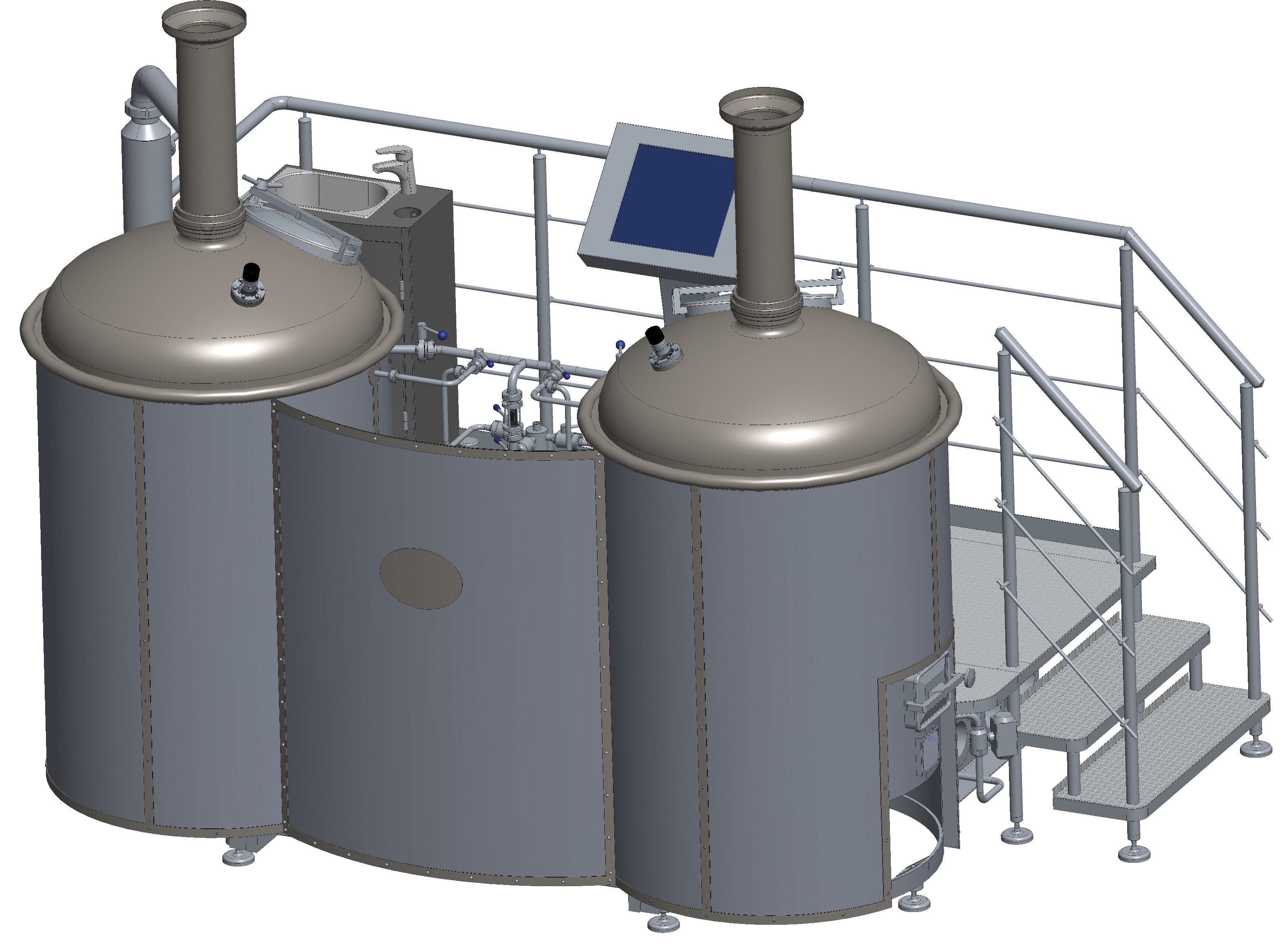

Brewhouse composed of 2 stainless steel vessels - the mash-boiling-whirlpool tun and the lauter tun - enabling the brew of 5 hl of cooled wort either by infusion (for Ale type beers) or by decoction (for Lager type beers). The Mash tun is also used as a Boiling tun, and as a Whirlpool.
From
79 700€
excl. VAT
Technical Data
|

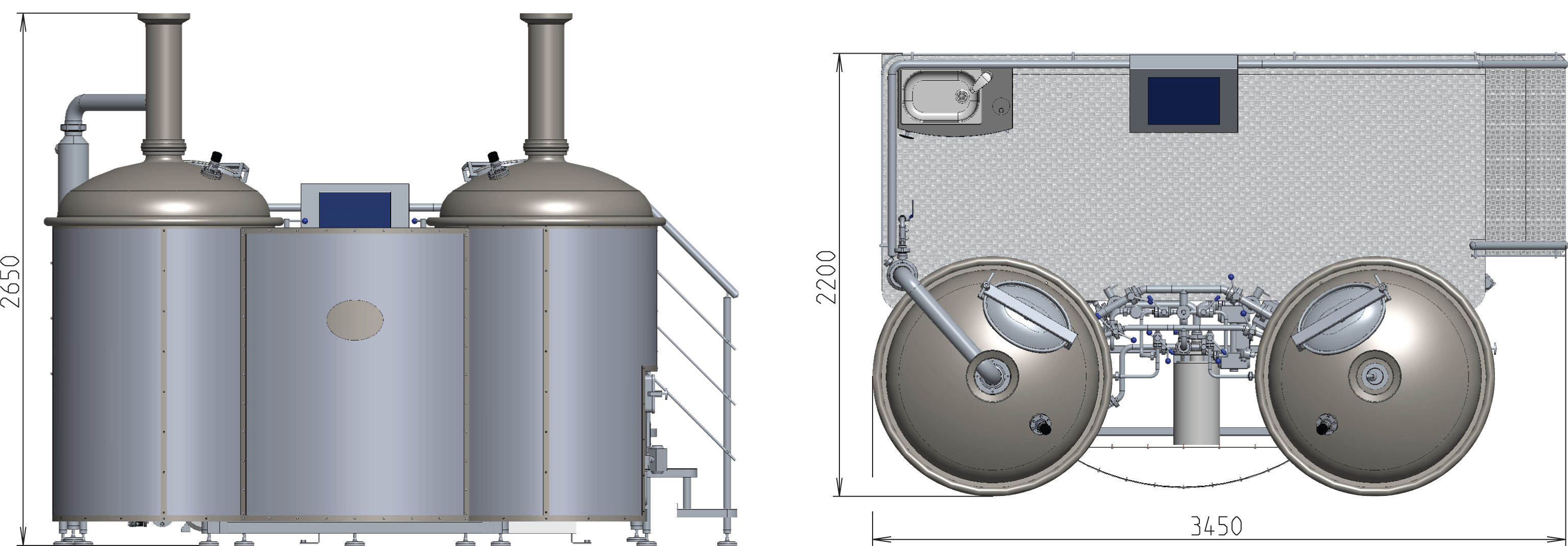

Dimensions Length / Width / Height [mm] |
3450×2220×2650 |
| Height of the service platform [mm] | 580 |
| Empty weight of the brewhouse [kg] | 1 500 |
| Gross volume of the filter tank [l] | 780 |
| Maximum filter pressure [kg/m2] | 130 |
| Gross volume of the mash tun [l] | 780 |
| Average weight per m2 at full load [kg] | 460 |
| Steam requirements [kg / h] | 80 |
| Steam consumption [per brew] | 225 |
| Power of the steam generator [kW] | 50 |
| Power of the electric oil boiler [kW] | 37,5 |
| Water consumed for condensation of residual vapors [l / brew] | 100 |
