MOBILE CIP 2×150L
Mobile cleaning station CIP 2x150l (2x250 l) enables flexible and trouble‐free cleaning of tanks with the volume of 60 (120) hl or of DN40 pipeline with the length of up to 75 (125) meters.
From
16 900€
excl. VAT
Technical Data
| Connection | DN32 (DIN 11851) |
| Volume | 2×150 (2×250) litres |
| Weight | 280 (300) kg |
| Maximum flow rate | 160 l/h |
| Maximum pump pressure | 2,8 Bar |
| Input | 8 kW ( 14 kW variant with two heating bodies) |
| Power supply | 3AC+N+PE 400V/230V/50Hz |
| Maximum achievable temperature | 90° C |

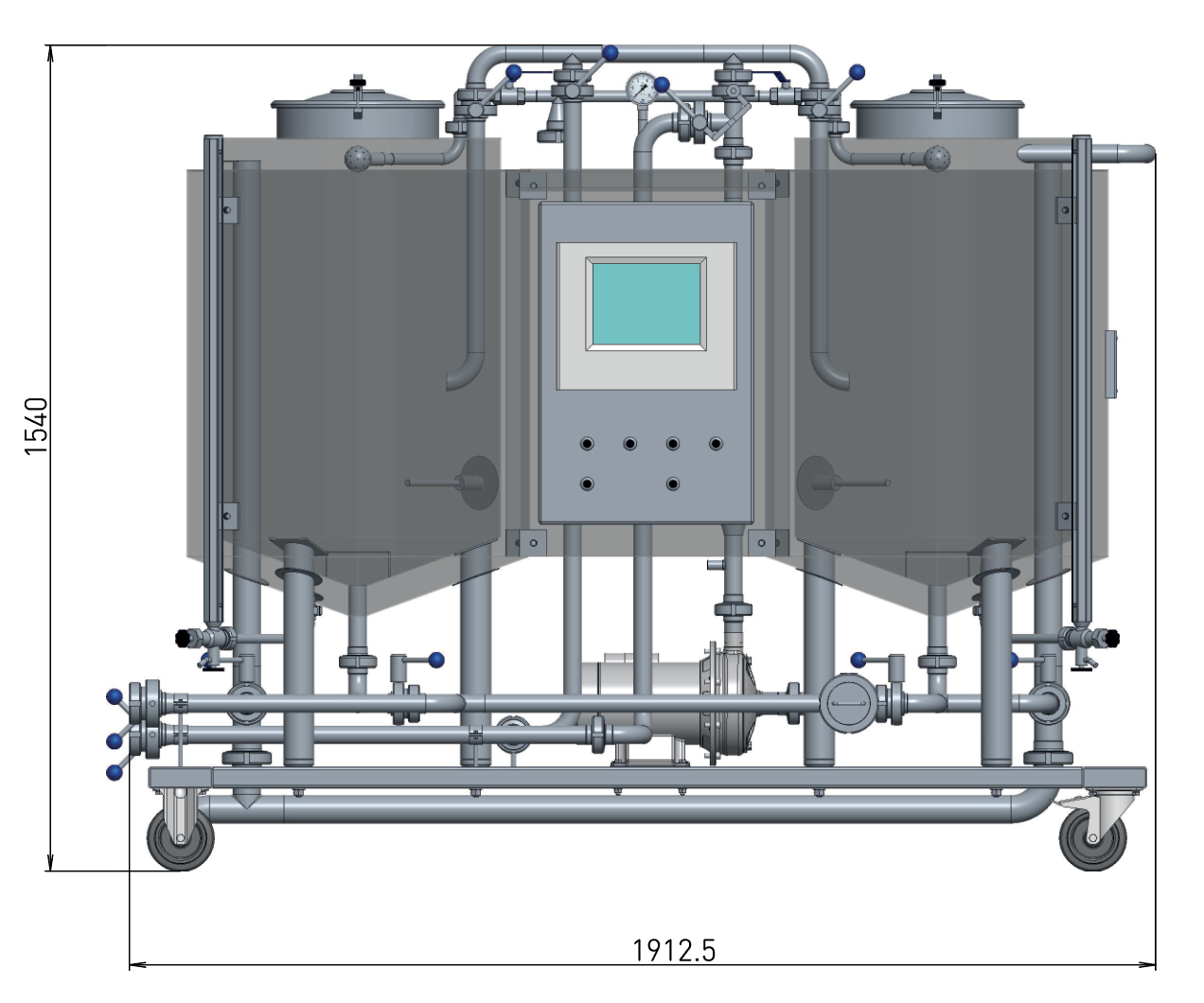

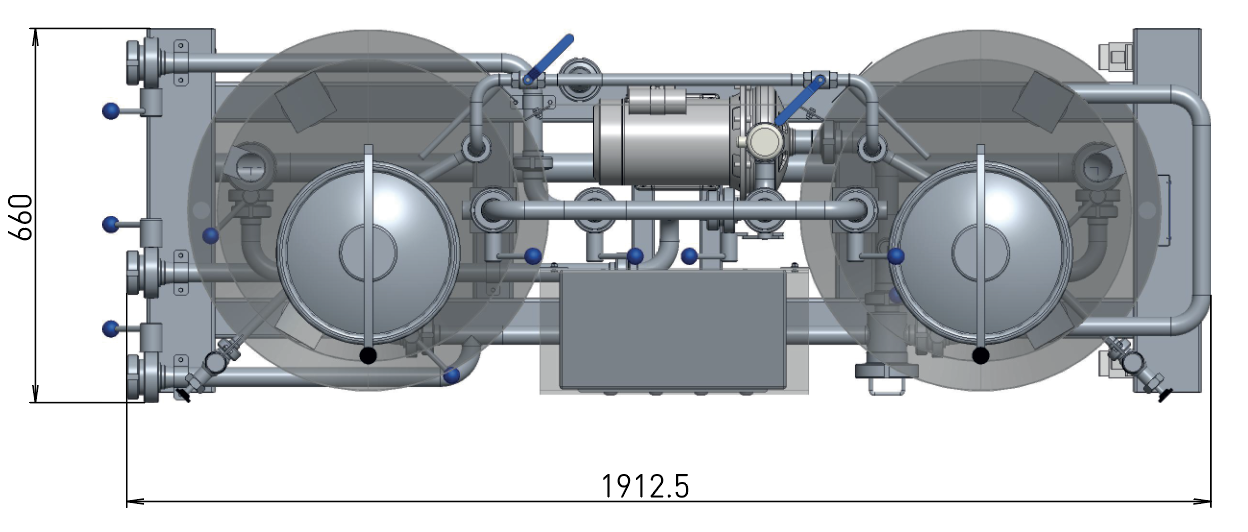

| Outer dimensions | 1900 × 700 × 1,600 mm (l × w × h) |
| Maximum volume of the tank cleaned | 60 (120) hl |
| Maximum length of the pipeline cleaned | DN32 = max. 100 (175 )m / DN40 = max. 75 (125) m |
